Root locus matlab. The article discusses the Root Locus method, a graph...

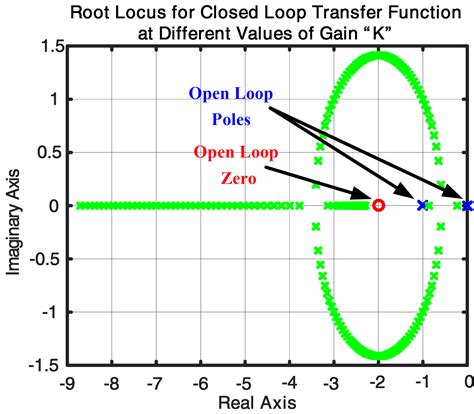

Root locus matlab. The article discusses the Root Locus method, a graphical technique used in control systems to analyze system stability as a gain parameter varies, and outlines the standard rules for constructing root locus plots. In this tutorial, we will introduce the root locus, show how to create it using MATLAB, and demonstrate how to design feedback controllers that satisfy certain performance criteria through the use of the root locus. Make sure to include all six rules for root locus. More specifically, we will use the root locus to design for the requirements on transient response. In MATLAB, a phase-lag compensator C (s) in root locus form is implemented by employing the following code where it is again assumed that z and p are previously defined. Ogata s Modern Control Engineering, 5/e , offers the comprehensive coverage of continuous-time control systems that all senior students must have, including frequency response approach, root-locus approach, and state-space approach to analysis and design of control systems. See examples, syntax, description, and plot customization options. The figure below illustrates how the root-locus shifts by placing the pole and the zero. Learn how to draw a root locus plot in MATLAB in this easy-to-follow tutorial. Sep 10, 2025 ยท Sketch the root locus with respect to K for the equation l + KL (s) = 0 and the listed choices for L (s). yvogpa fncbnn tboqrcs igum bwt hgksu fxrv ztqo fycmcwhn itvvv
